Place of Origin:
china

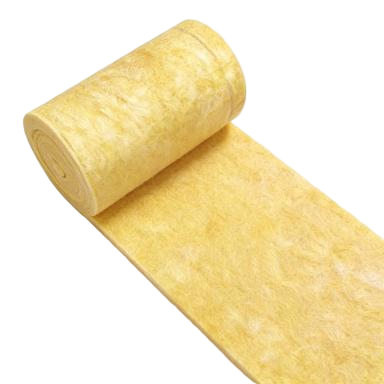

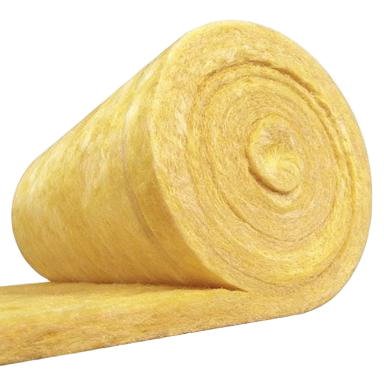

This product is a glass wool blanket specially designed for light steel structure wall insulation. It is manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and the application of a specialized thermosetting resin.
Available in unfaced (bare) form, it is specifically engineered for double-layer wall systems with interior lining panels, filling the space between steel studs to create a continuous insulation layer. The blanket can be customized in length according to project requirements, reducing on-site splicing and material waste while improving installation efficiency. It achieves a Class A non-combustible rating, ensuring superior fire safety performance.
| Parameter | Unit | JHY-FG12 | JHY-FG16 |
|---|---|---|---|
| Density | kg/m³ | 12 | 16 |
| Size | mm | 50/75/100*1200*Length | 50/75/100*1200*Length |
| Face | -- | Unfaced | Unfaced |
| Combustibility | -- | Class A | Class A |
| Thermal Conductivity (25℃) | W/(m·K) | 0.041 | 0.037 |
