Place of Origin:
china

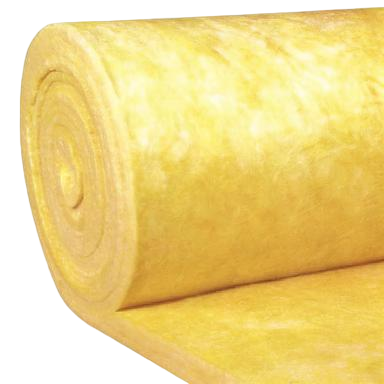

This product is a glass wool blanket specially designed for curtain wall insulation systems. Manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and specialized thermosetting resin application, it is available in unfaced form specifically engineered for curtain wall backing insulation.
The flexible blanket fills irregular cavities between curtain wall panels and the main structure, adapting to complex structural configurations to ensure continuous insulation without voids. Customizable lengths reduce on-site splicing and material waste while achieving Class A non-combustible rating for reliable fire safety protection.
| Parameter | Unit | JHY-FG16 | JHY-FG24 |
|---|---|---|---|
| Density | kg/m³ | 16 | 24 |
| Size | mm | 50/75/100×1200×Length | 50/75/100×1200×Length |
| Face | -- | Unfaced | Unfaced |
| Combustibility | -- | Class A | Class A |
| Thermal Conductivity (25℃) | W/(m·K) | 0.037 | 0.035 |
