Insulation Glass Wool Blanket With FSK Facing Curtain Wall Backing Insulation

Insulation Glass Wool Blanket With FSK Facing Curtain Wall Backing Insulation

Curtain Wall insulation wool roll

moistureproof insulation wool roll

glass wool blanket with aluminum foil

Place of Origin:

china

Chat Now
Request A Quote
Product Details
Density:
16/24 Kg/m3
Size:
50/75/100×1200×Length Mm
Facing Material:
FSK
Thermal Conductivity:
0.037/0.035 W/(m*K)
Material Composition:
Glass Wool With Thermosetting Resin
Moisture Resistance:
FSK Facing
Highlight:

Curtain Wall insulation wool roll

,

moistureproof insulation wool roll

,

glass wool blanket with aluminum foil

Payment & Shipping Terms
Minimum Order Quantity
1 container.
Payment Terms
L/C,T/T
Product Description
Insulation Glass Wool Blanket with FSK Facing | Curtain Wall Backing Insulation
Product Overview

This product is a glass wool blanket with FSK facing, specially designed for curtain wall insulation systems. It is manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and the application of a specialized thermosetting resin. It features a composite FSK (Foil-Scrim-Kraft) facing, providing excellent moisture resistance, mechanical reinforcement, and thermal reflectivity.

Specifically engineered for curtain wall backing insulation, the soft, flexible blanket adapts to complex structural configurations behind the curtain wall, while the FSK facing effectively blocks external rain and moisture penetration and provides windproof protection. The blanket can be customized in length, providing an ideal solution for curtain wall projects with special moisture protection requirements.

Applications
  • Backing insulation for glass, stone, and metal curtain walls
  • Curtain wall projects requiring rain and wind protection
  • Curtain walls in high-humidity areas or coastal buildings
  • Building projects with complex structural configurations behind curtain walls
Technical Specifications
Parameter JHY-FG16-F JHY-FG24-F
Density (kg/m³) 16 24
Size (mm) 50/75/100×1200×Length 50/75/100×1200×Length
Face FSK FSK
Thermal Conductivity (25℃) W/(m·K) 0.037 0.035

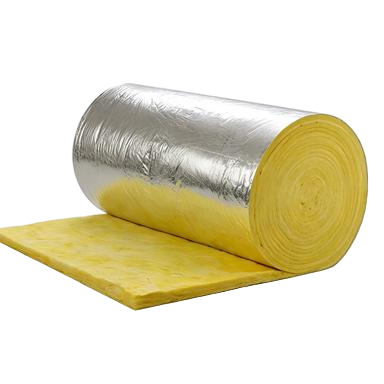

Product Image
Insulation Glass Wool Blanket with FSK Facing for curtain wall applications
Key Features & Advantages
  • FSK Facing for Rain and Wind Protection - Effectively blocks external rain and moisture penetration
  • Excellent Condensation Prevention - Reduces condensation risk on curtain wall interior
  • Flexible Design for High Adaptability - Fills irregular cavities
  • Low Thermal Conductivity for Energy Efficiency
  • Custom Lengths to Minimize Waste
  • Excellent Resilience, Resists Settling
