Insulation Glass Wool Blanket Class A Long-Distance Heating Pipeline Insulation

Insulation Glass Wool Blanket Class A Long-Distance Heating Pipeline Insulation

100mm Industrial Fiberglass Insulation

Pipeline Industrial Fiberglass Insulation

100mm fiberglass tube insulation

Place of Origin:

china

Chat Now
Request A Quote
Product Details
Density:
48 Kg/m3
Size:
60/80/100×1200×Length Mm
Face:
Unfaced
Combustibility:
Class A
Thermal Conductivity:
0.040 W/(m*K)
Operating Temperature:
300℃
Highlight:

100mm Industrial Fiberglass Insulation

,

Pipeline Industrial Fiberglass Insulation

,

100mm fiberglass tube insulation

Payment & Shipping Terms
Minimum Order Quantity
1 container.
Payment Terms
L/C,T/T
Product Description

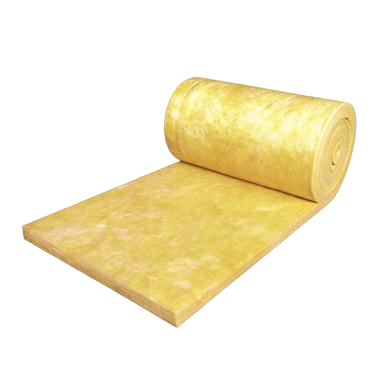

Insulation Glass Wool Blanket | Class A | Long-Distance Heating Pipeline Insulation

This product is a specialized glass wool blanket engineered specifically for long-distance heating pipeline insulation. Manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and application of specialized thermosetting resin, it is available in unfaced form with a long-term operating temperature up to 300℃.

The soft, flexible blanket conforms tightly to curved surfaces of large pipes, making it ideal for on-site wrapping construction. This ensures a continuous insulation layer without voids, providing excellent high-temperature resistance and thermal insulation properties that effectively reduce heat loss during long-distance transmission and improve energy efficiency.

With a Class A non-combustible rating, this insulation provides reliable fire safety protection for heating pipelines.

Applications
  • District heating pipeline insulation
  • Long-distance steam pipeline insulation
  • Thermal transmission systems
  • Various long-distance high-temperature medium pipelines
Specification
Parameter Unit Value
Model -- JHY-HF48
Density kg/m³ 48
Size mm 60/80/100×1200×Length
Face -- Unfaced
Combustibility -- Class A
Thermal Conductivity (70℃) W/(m·K) 0.040
Glass wool insulation blanket for heating pipeline applications
Feature Advantages
Long-Term Operating Temperature Up to 300℃ - Excellent high-temperature resistance
Designed for Long-Distance Pipelines - Suitable for on-site wrapping construction
Flexible Design for High Adaptability - Conforms tightly to curved surfaces of large pipes
Class A Non-Combustible
Low Thermal Conductivity for Energy Efficiency
Custom Lengths to Minimize Waste
Excellent Resilience, Resists Settling
