V Shaped Groove Lined Rock Wool Planting Blanket

V Shaped Groove Lined Rock Wool Planting Blanket

Groove Lined mineral wool hydroponics

Planting mineral wool hydroponics

Groove Lined rock wool for growing

Place of Origin:

china

Chat Now
Request A Quote
Product Details
Density Tolerance:
±10%
Fiber Diameter:
≤6.0 μm
Shot Content:
≤5.0%
Water Absorption:
≥70%
Material:
Flexible Rock Wool
Installation Method:
Pre-cut And Direct Laying
Highlight:

Groove Lined mineral wool hydroponics

,

Planting mineral wool hydroponics

,

Groove Lined rock wool for growing

Payment & Shipping Terms
Minimum Order Quantity
1 container.
Payment Terms
L/C,T/T
Product Description

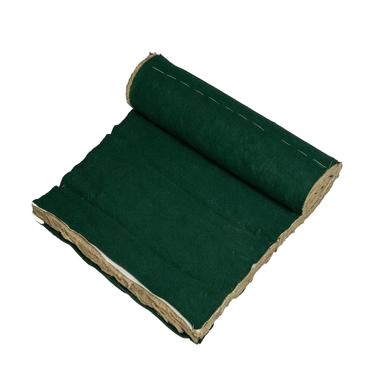

V-Shaped Groove Lined Rock Wool Planting Blanket
Product Overview

The V-shaped groove lined rock wool planting blanket is a custom-fit vegetation solution designed for specialized engineering applications. This flexible rock wool material conforms tightly to the inner walls and bottom contours of V-shaped grooves, creating a continuous vegetation growth base that prevents substrate leakage and loss associated with traditional backfilling methods.

Applications

• V-shaped groove greening for extremely steep rock slopes
• Planting trench restoration for extremely steep waste rock slopes
• Vertical greening for confined spaces

Technical Specifications
Parameter Typical Value
Density Tolerance ±10%
Fiber Diameter ≤6.0 μm
Shot Content ≤5.0%
Volume Water Absorption ≥70%
Key Features
  • Flexible and bendable for irregular shape adaptation: The soft mat can be freely bent along the contours of V-shaped troughs, closely adhering to the bottom and side walls to eliminate voids and achieve full coverage.
  • Leakage prevention and substrate retention: After installation, the mat forms a continuous, closed vegetation base layer that effectively prevents substrate loss from trough gaps under irrigation or rainfall conditions, reducing maintenance requirements.
  • Water retention and root promotion with optimized micro-environment: The rock wool mat offers high water-holding capacity, creating localized moisture reserves within the trough; the fiber structure provides low-resistance pathways for root penetration, encouraging root extension into the mat.
  • Reduced thickness and loading with structure-friendly design: Replaces traditional thick-layer soil filling methods, reducing trough load and lowering structural safety requirements for anchoring systems and trough components, thereby extending project service life.
  • Convenient installation with precise placement: The mat can be pre-cut and directly laid or inserted on-site, reducing manual filling operations within the trough and improving construction accuracy and efficiency.
V-shaped groove lined rock wool planting blanket installation diagram
