Place of Origin:
china

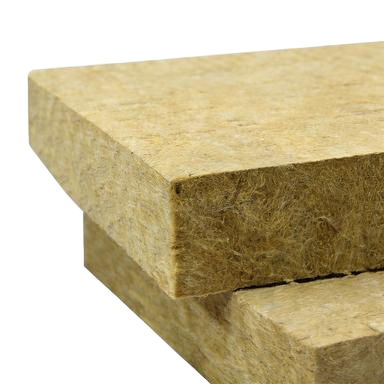

Our ultra-precision rock wool is specially engineered for continuous automated sandwich panel production lines. Using high-precision forming technology, it achieves thickness tolerance within 0-1mm with uniform density distribution and no voids or delamination. This exceptional dimensional accuracy ensures uniform pressure distribution during lamination with metal facings, resulting in high panel flatness and elimination of thermal bridging.
Meeting Class A1 non-combustible fire standards with stable thermal performance, it is the preferred core material for premium metal sandwich panels, cold storage panels, and cleanroom panels.
| Parameter Product | CL100 | CL120 |
|---|---|---|
| Density (kg/m³) | 100 | 120 |
| Tensile Strength (kPa) | ≥150 | ≥200 |
| Compression Strength (kPa) | ≥70 | ≥100 |
| Sheering Strength (kPa) | ≥60 | ≥80 |
| Acidity Coefficient | ≥2.0 | |
| Thermal Conductivity (W/m*K, 25°C) | ≤0.045 | |
| Hydrophobic Rate (%) | ≥99.0 | |
| Combustibility | A1 | |
| Short-term Water Absorption (kg/m², Partial Immersion) | ≤0.4 | |
| Mass Moisture Absorption (%) | ≤0.3 | |
| pH (Aqueous Extract) | 7.0 - 9.5 | |
High-precision forming ensures thickness tolerance within 0-1mm, providing uniform lamination pressure and superior panel flatness.
Uniform density distribution ensures no voids or delamination, guaranteeing long-term panel stability.
Tight core-to-facing contact effectively reduces thermal bridging, improving overall panel thermal performance.
Meets Class A1 non-combustible standard, with no burning or toxic fumes, meeting building fire codes.
Uniform specifications and dimensional stability adapt to high-speed continuous lamination, minimizing line downtime.
