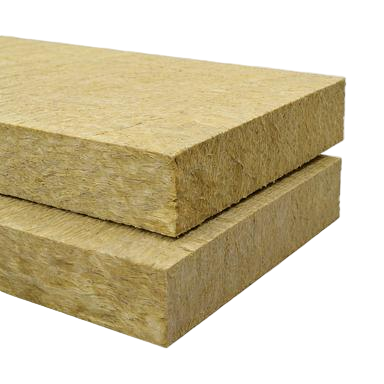

Our heat resistant rock wool is engineered for thermal insulation of high-temperature equipment in petrochemical, power generation, metallurgical, and kiln industries. The product achieves a continuous service temperature up to 650°C, and short-term tolerance up to 800°C. It maintains dimensional stability with no shrinkage or powdering under high temperatures, effectively reducing heat loss and energy consumption. Meeting Class A non-combustible fire standards, it ensures industrial safety. Ideal for pipelines, tanks, reactors, and industrial furnaces.
| Parameter Product | JYX-TB80 | JYX-TB100 | JYX-TB120 |
|---|---|---|---|
| Density (kg/m³) | 80 | 100 | 120 |
| Maximum Service Temperature (°C) | 650 | 750 | 800 |
| Heat-shrinkage Temperature (°C) | 600 | 650 | 680 |
| Acidity Coefficient | ≥2.0 | ||
| Chloride Ion Leaching | Pass | ||
| Chloride ion content (Optional) | ≤10ppm | ||
| Boiling Test | Pass | ||
| Combustibility | A1 | ||
| Water Repellency (%) | 99.5 | ||
| Mass Moisture Absorption (%) | ≤1 | ||
| Product Thermal Conductivity Temperature | 70°C | 100°C | 200°C | 300°C | 400°C | 500°C |
|---|---|---|---|---|---|---|
| JYX-TB80 | 0.044 | 0.047 | 0.062 | 0.081 | 0.104 | 0.156 |
| JYX-TB100 | 0.043 | 0.045 | 0.059 | 0.077 | 0.099 | 0.148 |
| JYX-TB120 | 0.042 | 0.044 | 0.059 | 0.079 | 0.101 | 0.151 |
Premium raw material ensures continuous service up to 650°C with maximum service of 800°C, no shrinkage or powdering.
Meets Class A non-combustible standard, with no burning or toxic fumes, meeting strict industrial fire requirements.
Maintains low thermal conductivity at high temperatures, effectively reducing equipment heat loss and energy consumption.
High acidity coefficient provides resistance to acids, alkalis, and oils, suitable for harsh industrial environments.
Boards can be cut on-site to fit various equipment shapes, enabling flexible and efficient installation.
