Place of Origin:
china

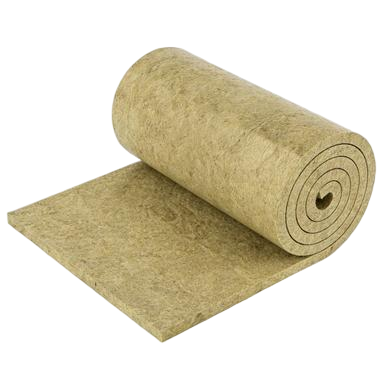

Our heat resistant rock wool blanket is engineered for large-diameter pipelines, storage tanks, and irregular-shaped equipment in industrial insulation applications. Available in roll form, it offers excellent flexibility to tightly conform to curved surfaces, large-diameter pipes, and irregular geometries, achieving seamless wrapping. With a continuous service temperature of 650°C, it remains stable under high heat. The blanket format enables easy transport and efficient installation, significantly reducing joints and heat loss. Meeting Class A non-combustible fire standards, it is ideal for petrochemical, power generation, marine, and metallurgical industries.
| Parameter Product | JYX-TF80-SW | JYX-TF100-SW | JYX-TF100-ZBF |
|---|---|---|---|
| Density (kg/m³) | 80 | 100 | 100 |
| Heat-shrinkage Temperature (°C) | 600 | 650 | 650 |
| Maximum Service Temperature (°C) | 800 | ||
| Acidity Coefficient | ≥2.0 | ||
| Chloride Ion Leaching | Pass | ||
| Chloride ion content (Optional) | ≤10ppm | ||
| Boiling Test | Pass | ||
| Combustibility | A1 | ||
| Water Repellency (%) | 99.5 | ||
| Mass Moisture Absorption (%) | ≤1 | ||
| Product Thermal Conductivity Temperature | 70°C | 100°C | 200°C | 300°C | 400°C | 500°C |
|---|---|---|---|---|---|---|
| JYX-TF80-SW | 0.044 | 0.047 | 0.062 | 0.081 | 0.104 | 0.156 |
| JYX-TF100-SW | 0.043 | 0.045 | 0.059 | 0.077 | 0.099 | 0.148 |
| JYX-TF100-ZBF | 0.043 | 0.045 | 0.059 | 0.077 | 0.099 | 0.148 |
Flexible blanket form tightly conforms to large-diameter pipes, elbows, and irregular equipment for seamless wrapping.
Continuous service temperature 650°C, maximum service temperature up to 800°C, with no shrinkage or powdering.
Meets Class A non-combustible standard, with no burning or toxic fumes.
Roll format offers compact storage and easy handling, reducing logistics costs.
