Place of Origin:
china

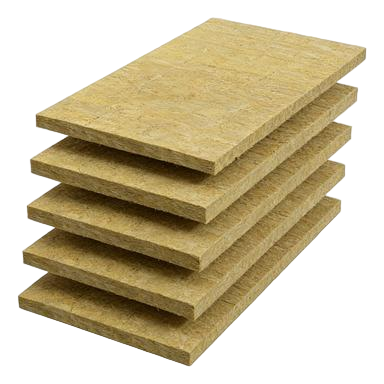

Our A60 class bulkhead fireproof rock wool is engineered for high-grade fire division areas on vessels and offshore platforms. With a thickness of 30mm, it meets the highest IMO A60 class fire-resisting division standard. Manufactured with specialized processes, it effectively blocks flame and heat penetration during fire, ensuring the non-fire side temperature remains within limits for 60 minutes.
| Parameter | Performance | Test Standard |
|---|---|---|
| Combustibility | Non-combustible | IMO 2010 FTP Code |
| Thermal Conductivity (W/(m*K)) | 0.035 | ISO 8302:1991 |
| Acidity Coefficient | ≥2.0 | GB/T 25975 |
| Mass Moisture Absorption (%) | <1% | GB/T 5480 |
| Hydrophobic Rate (%) | ≥99% | - |
| Anti-fungi | Qualified | ASTM C 1338 |
| Standard Size (mm) | 1000×600×(30~150) | - |
| Density (kg/m³) | 45~150 | - |
| Fire Rating | Thickness (mm) | Volume Weight (kg/m³) | Weight per m² (kg/m²) | Thermal Conductivity (W/(m*K)) | Sound Insulation (dB) |
|---|---|---|---|---|---|
| Bulkhead A30 | 30+30 | 45 | 2.7 | 0.035 | 48 |
| Bulkhead A60 | 30+30 | 45 | 2.7 | 0.035 | 48 |
| Deck A30 | 50 | 45 | 2.25 | 0.035 | 47 |
| Deck A60 | 50 | 45 | 2.25 | 0.035 | 47 |
Meets IMO A60 class fire-resisting standard, maintaining non-fire side temperature ≤140°C for 60 minutes, critical area safety assurance.
Achieves A60 class fire rating at just 30mm thickness, minimizing space occupation in compact vessel structures.
High acidity coefficient and specialized process ensure no shrinkage or powdering at high temperatures, maintaining 60-minute fire integrity.
Rock wool is Class A non-combustible, with no burning or toxic fumes, ensuring crew safety.
Excellent sound absorption and low thermal conductivity reduce noise and heat transfer between compartments.
